Spark LAN
WPEQ-405AX
工業級WIFI6模塊 支持2.4G/5G PCIE接口 QCN9074
-
品牌：
型號：
產品優勢：
Spark LAN
WPEQ-405AX
工業級WIFI6模塊 支持2.4G/5G PCIE接口 QCN9074

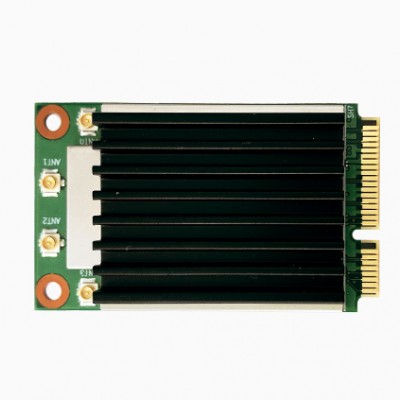

The first WiFi-6 (802.11ax) Qualcomm based AP solution on module formfactor from SparkLAN. WPEQ-405AX, is based on QCN9074 chipset solution. This is a true enterprise based wireless module that powers 4T4R (4×4) MU-MIMO, in 5Ghz Single band mode, hitting a theoretical speed of up to 4.8Gbps with 160MHz support.
Unlike typical Qualcomm reference design around QCN9074 (PN02.1), WPEQ-405AX shrink the traditional 50mmx50mm M.2 E-Key design to a more popular Mini PCIe Full size formfactor of just 50mm x 30mm, run at 3.3V voltage. Provides a greater versatility to use on more common seen design.
WPEQ-405AX performs both AP and STA functionality with 4 spatial streams, although recommended more for hardware AP applications as it supports 4096-QAM, OFDMA technology, makes it perfect for heavy lifting applications such as Enterprise grade AP, UTM, public & transportation Hotspot, and other industrial capable Access Points.
Applications include Multimedia Router and AP solution., etc.
STANDARD |
||
| WI-FI | IEEE 802.11ax/ac/a/n | |
| Chipset | Qualcomm Atheros QCN9074 | |
| Host Interface | WLAN : PCIe | |
RADIO |
||
| Antenna | 4 x IPEX MHF1 connectors | |
| Operating Frequency | 802.11ax/ac/a/n ISM Band | |
| 5.150GHz~5.850GHz
*Subject to local regulations |
||
MODULATIONS |
||
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | |
| 802.11ax | OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM) | |
POWER & SENSITIVITY |
||
| WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
| 11a @ 54Mbps | 17dBm | ≤ -76dBm |
| 11n HT20 @ MCS 7 | 17dBm | ≤ -70dBm |
| 11n HT40 @ MCS 7 | 17dBm | ≤ -68dBm |
| 11ac VHT80 @ MCS 9 | 16dBm | ≤ -62dBm |
| 11ac VHT160 @ MCS 9 | 16dBm | ≤ -60dBm |
| 11ax HE20 @ MCS 11 | 15dBm | ≤ -64dBm |
| 11ax HE40 @ MCS 11 | 15dBm | ≤ -62dBm |
| 11ax HE80 @ MCS 11 | 15dBm | ≤ -57dBm |
| 11ax HE160 @ MCS 11 | 15dBm | ≤ -55dBm |
POWER CONSUMPTION |
||
| Continue TX | 1954 mA | |
| Continue RX | 819 mA | |
ENVIRONMENTAL |
||
| Operating Voltage | DC 3.3V | |
| Temperature Range | -20~ 70°C (Operating) | -20 ~ 90°C (Storing) |
| Humidity(Non-Condensing) | 5 ~ 90% (Operating) | 5 ~ 90% (Storing) |
SIZE |
||
| Dimension (MM) | 50.80mm (±0.15mm) x 29.85mm (±0.15mm) x 9.3mm (±0.3mm) | |
| Weight | 14.6 g | |
SOFTWARE |
||
| Driver | Linux (Open Source) | |
| Security | 64/128-bits WEP, WPA, WPA3, 802.1x | |
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
 |
 |
 |
|||
| USA | EU Region | Canada |
 |
 |
||||
| ROHS | Reach |
